OKM GeoSeeker Mini

Water detector and cavity detector up to 100 meters (328 ft) depth

Like his big brother GeoSeeker, the GeoSeeker Mini utilizes a geoelectrical measurement procedure based on Schlumberger. The water detector – that can also be used to detect underground cavities – determines the soil resistivity. Based on that apparent resistivity of the ground the detector is able to detect underground water resources like fresh water, drinking water, water-bearing gravel and groundwater level.

Geoelectric water and cavity detector: Determines the ground resistance up to a depth of 100m and visualizes the measured values in 2D

Depth: Customers found water up to 100 meters – check our references

Use cases:water detection, cavity detection, geotechnical engineering

Operating modes: Geoelectrical scan

Detectable objects: water deposits, water-bearing gravel, cavities

July 04, 2018

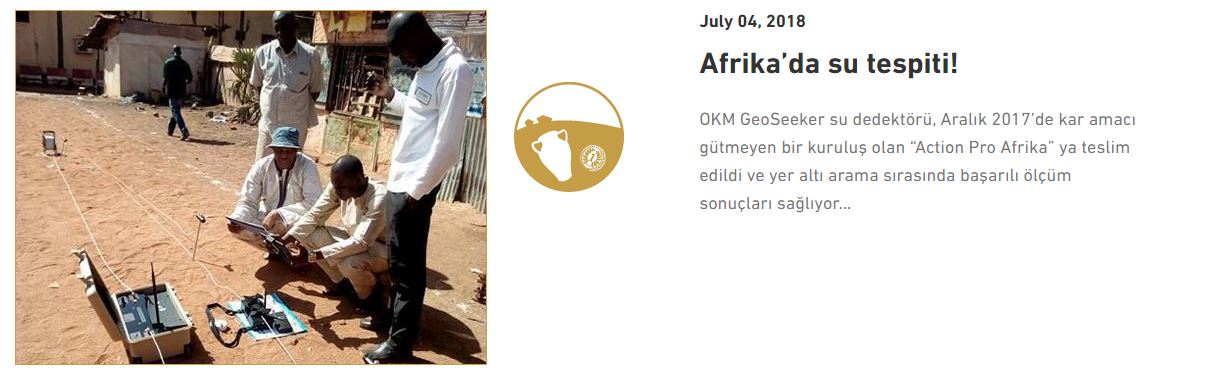

Water detection in Africa

Water detector OKM GeoSeeker was handed over in December 2017 to “Aktion Pro Afrika” – a nonprofit organization – and already provides successful measurement results during the search for underground …

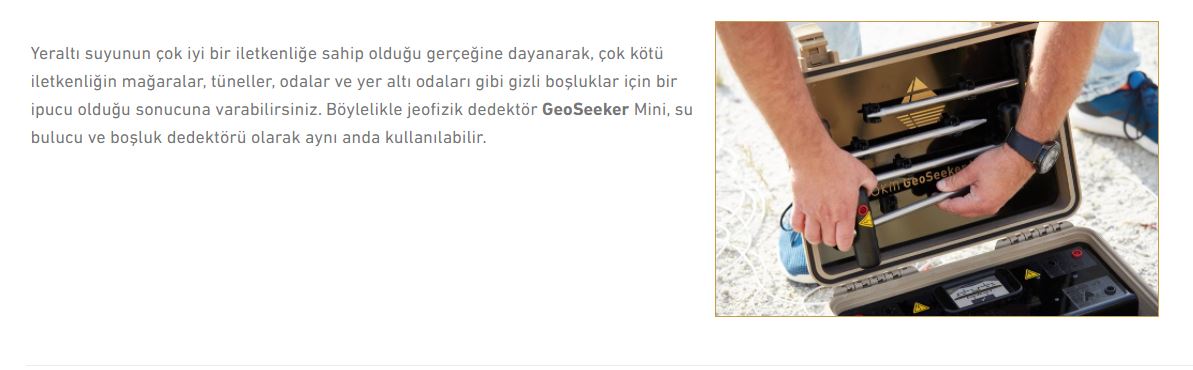

Based on the fact that underground water has a very good conductivity, you can conclude that very bad conductivity is a hint for hidden cavities like caves, tunnels, chambers and underground rooms. Thus, the geophysical detector GeoSeeker Mini can be deployed as water finder and cavity detector at the same time.

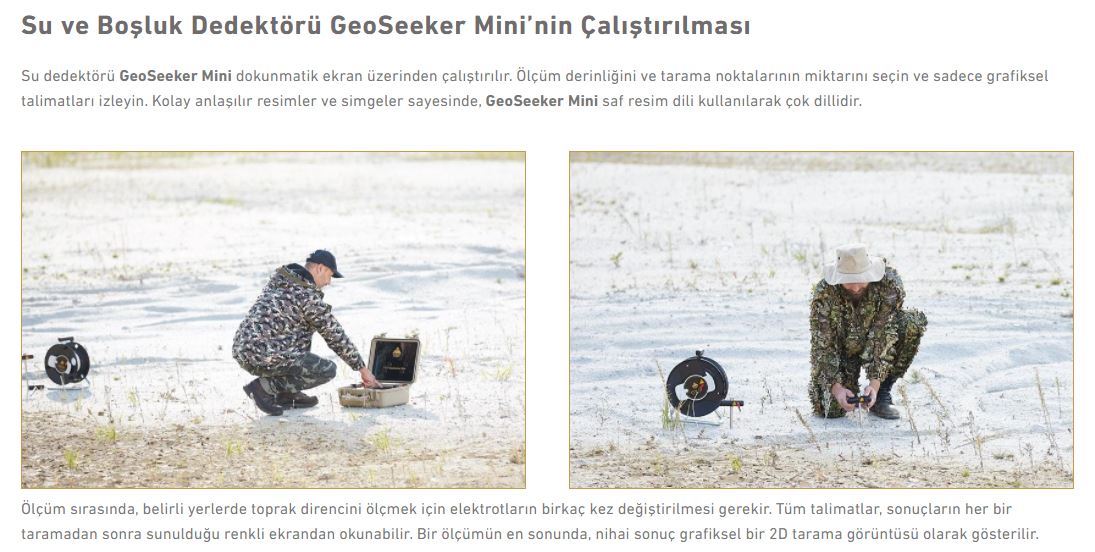

Operating the water and cavity detector GeoSeeker Mini

The water detector GeoSeeker Mini is operated via touchscreen. Select the measurement depth as well as the amount of scanning points and simply follow the graphical instructions. Due to easy-to-understand images and icons, the GeoSeeker Mini is multilingual by using pure picture language.

During the measurement the electrodes have to be replaced several times to measure the ground resistivity at certain places. All instructions can be read from the color display, where the results are presented after each single scan. At the very end of a measurement the final result is shown as a graphical 2D scan image.

Data visualization of water resources and cavity

After finishing a geoelectrical measurement, the final result is calculated to generate a representative 2D scan image of the underground resistivity. With the pictograms in the lower display area, users can read directly the diagram: The colors in the scheme indicate water deposits (blue with water drops) and/or detected cavities (red with tunnel symbol).

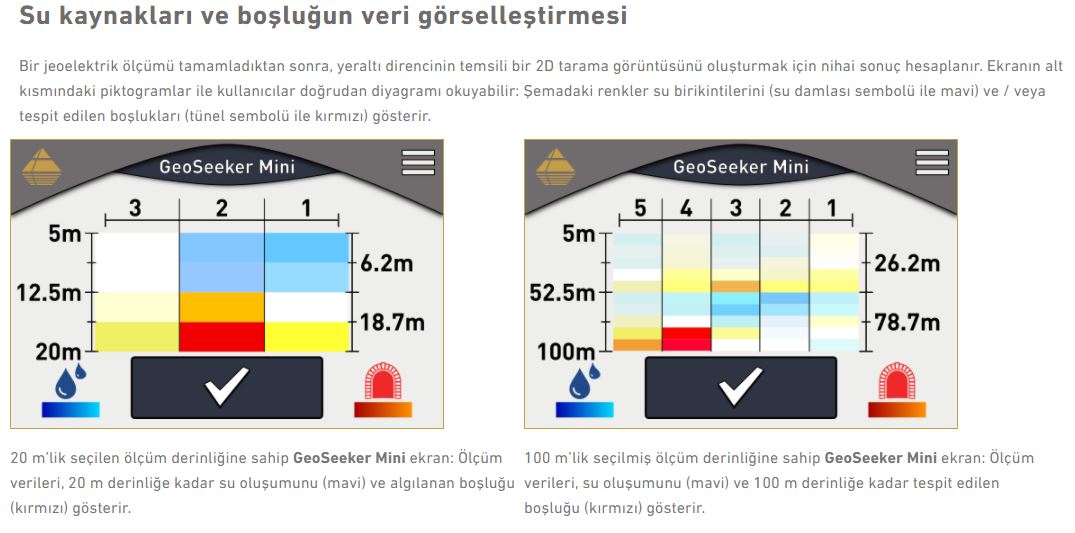

GeoSeeker Mini display with selected measuring depth of 20 m: Measurement data show water occurrence (blue) and detected cavity (red) up to 20 m depth.

GeoSeeker Mini display with selected measuring depth of 100 m: Measurement data show water occurrence (blue) and detected cavity (red) up to 100 m depth.

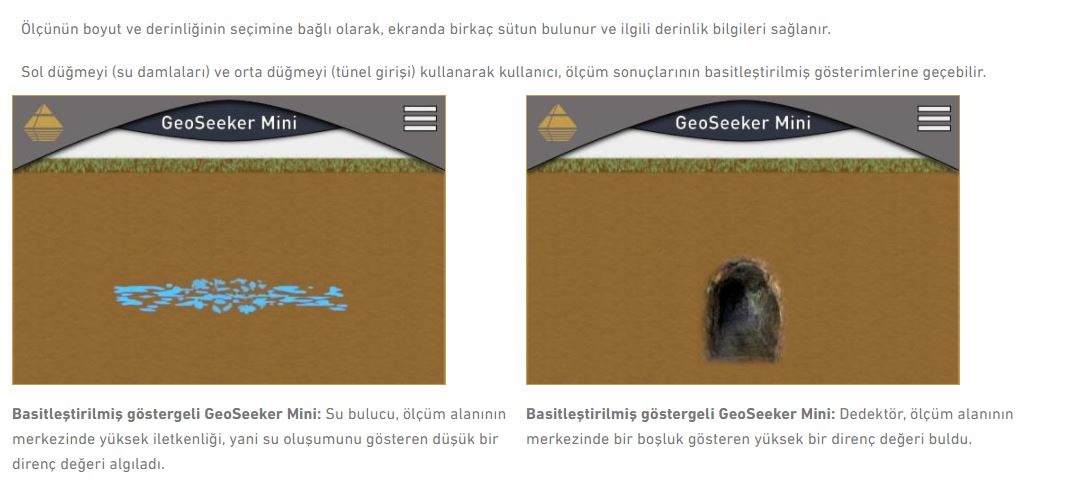

GeoSeeker Mini with simplified indication: The waterfinder has detected a low resistance value in the center of the measuring field, which indicates high conductivity, i.e. water occurrence.

GeoSeeker Mini with simplified indication: The detector found a high resistance value in the center of the measuring field, indicating a cavity.

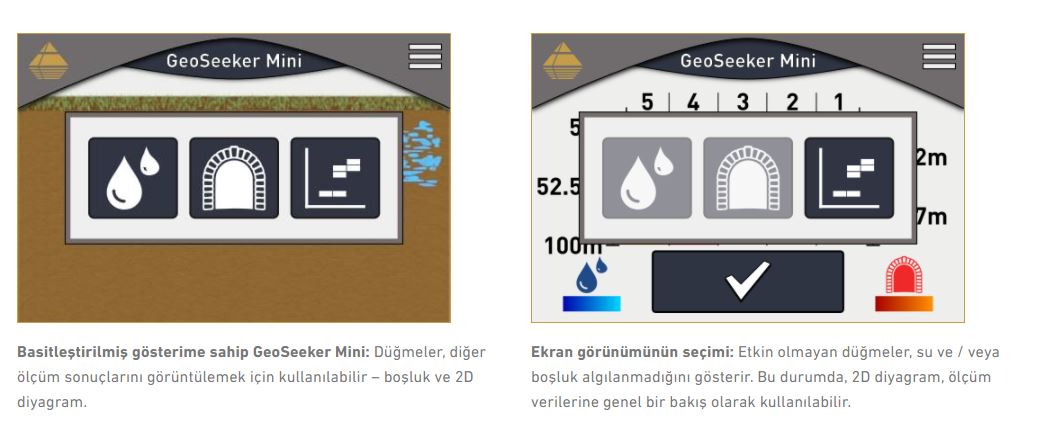

GeoSeeker Mini with simplified indication: The buttons can be used to display further measurement results – cavity and 2D diagram.

Selection of the screen view: Inactive buttons indicate that no water and/or cavity has been detected. In this case, the 2D diagram is available as an overview of the measurement data.

Thanks to the realization of step-by-step instructions and results in simple images and pictograms, the GeoSeeker Mini is language-independent. That means, the water detector can be used by inexperienced users all over the world – no matter what language they speak.

Geoelectrical applications with GeoSeeker Mini

The geoelectrical detector OKM GeoSeeker Mini can be used to detect underground water resources as well as hidden cavities. Both structures can be located due to its specific characteristics of electrical resistivity.

Water detection

Underground water resources have a good electrical conductivity and measuring its resistivity will result in low apparent resistivity values. The capability of water detection is very useful for

• dowsers, water finders
• well builders, drilling companies
• agriculture, fruit growing
• mining, building contractors
• Detectable subsurface water deposits could be

• ground water level
• fresh water, drinking water
• underground watercourse, water veins
• underground water streams, headwaters

Cavity detection

Hidden cavities and hollow spaces have a rather poor electrical conductivity and measuring its resistivity will result in high apparent resistivity values. The capability of cavity detection is useful for

• archaeologists, historians
• treasure hunters
• geotechnical engineering
• military services
• building contractors
• Detectable subsurface cavities could be

• caves, tunnels
• galleries and manholes
• chambers, sepulchers, tombs
• bunkers, vaults, cellars, rooms
