OKM GeoSeeker

Water detector and cavity detector up to 250 meters (820 ft) depth

Are you looking for underground water resources or hidden cavities up to depths of 250 meters (820 ft)? The GeoSeeker is a professional geoelectrical water detector and cavity detector that measures the ground resistivity and visualizes its scan data in incredible 3D graphics. It is a very mobile and easy to operate geoelectrical detector designed and manufactured in Germany.

• Geoelectric water and cavity detector: Determines the ground resistance up to a depth of 250m and visualizes the measured values in 3D
• Depth: Customers found water up to 250 meters – check our references
• Use cases: water detection, cavity detection, geotechnical engineering
• Operating modes: Geoelectrical scan
• Detectable objects: water deposits, water-bearing gravel, cavities

July 04, 2018

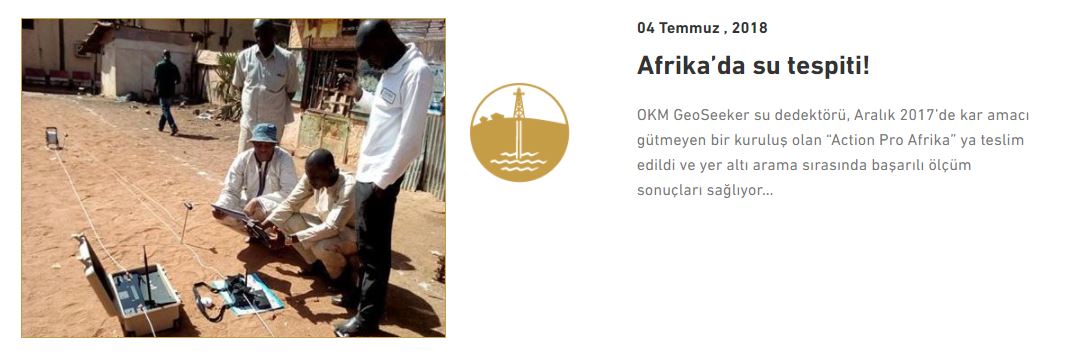

Water detection in Africa

Water detector OKM GeoSeeker was handed over in December 2017 to “Aktion Pro Afrika” – a nonprofit organization – and already provides successful measurement results during the search for underground …

The GeoSeeker utilizes a geoelectrical measurement procedure based on Schlumberger to read the apparent resistivity of the ground. Based on that ground resistivity the detector is capable to locate underground water deposits, water-bearing gravel and groundwater level as well as cavities like caves, tunnels, chambers and the like. Thus, the geophysical detector can be deployed as water finder or cavity detector at the same time.

GeoSeeker Scan Modes

GeoSeeker hardware components are completely controlled by a modern Android Tablet PC. All commands and measurement results are transferred wireless via Wi-Fi. Using the pre-installed software application you simply select one of three supported scan modes:

Active Scan (Accurate)

While using this scan mode the GeoSeeker utilizes two electrodes to inject electrical power into the underground soil. Two additional electrodes are measuring the potential difference (fall of voltage) at specific scan points to calculate the final resistivity value. This mode is used to detect underground water deposits, hidden caves or even impervious layers and barriers within the underground soil. In active scans you will be able to define a specific depth range in that you are going to conduct your measurement. So you will define a starting and ending depth between 5 meters (16 feet) and 250 meters (820 feet).

Active Scan (Quick)

This scan mode is a quick version of the accurate scan. It is also injecting electrical current into the underground and measuring the potential difference (fall of voltage) to calculate the resistivity of the ground.

Passive Scan

While using this scan mode the GeoSeeker only utilizes two electrodes to read the natural occurring voltage of the underground (no electrical power is injected into the underground). This mode is used to detect underground flowing water only.

GeoSeeker Software

The GeoSeeker’s software application is providing simple step-by-step instructions to assist you in completing the measurement. You simply follow these pictured instructions until your measurement has been finished. After completing the measurement a graphical 3d representation of the measure values is created and displayed on the screen of your Tablet PC. Some color adjustment options are provided to optimize the graphical 3d visualization of your underground water deposits, water-bearing gravel and groundwater level (shown in bluish colors) as well as cavities, caves, tunnels, chambers or impervious layers (shown in reddish colors).

GeoSeeker Transportation

The GeoSeeker hardware is integrated in a waterproof and shock-resistance Peli case. Thus, your geoelectrical equipment is well packed and always ready for transportation.
