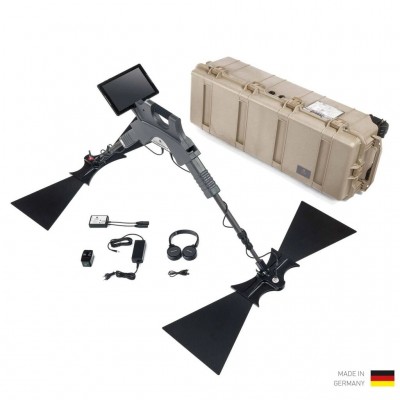

OKM Gepard GPR 3D

The Gepard GPR is a very flexible and powerful Ground Penetrating Radar for the detection of underground objects like pipelines, cavities, cables, conduits, tunnels, bunkers and foundations.

The Gepard ground penetrating radar uses an omnidirectional unshielded transmission system to reach maximum depths up to 40 meters (131 ft). The agile and compact unit can easily be operated by a single user via Android Tablet PC.

• Flexible & powerful: Ground Penetrating Radar using an omnidirectional unshielded transmission system to reach maximum depths up to 40 meters
• Depth: Customers found objects up to 40 meters deep
• Use cases: archaeology, geotechnical engineering, treasure hunting
• Operating modes: Ground Scan, Live Stream
• Detectable objects: underground objects like pipelines, cavities, cables, conduits, tunnels, bunkers and foundations

July 26, 2019

Explorations in and around the Templar Church in Poland

Recently, an excavation was carried out in Poland with focus on the search for tunnels and vaults around and in the church of the Knights Templar. Find out what was …

The RADAR (Radio Detection and Ranging) of the Gepard GPR 3D sends a signal into the ground and awaits the reflection or echo of the signal to detect sub-surface anomalies.

Detectable objects and structures

• underground walls, basements and concrete reinforcements
• hidden cavities, graves and sepulchers
• water level and underground rivers and aquifers
• buried pipelines, conduits and cable harnesses
• backfilled wells, galleries, trenches and dugouts
• septic tanks, distribution boxes and drainage pipes
• secret tunnels, bunkers and shelters
• buried treasure chests, statues and caches

Optimization of ground surveys

The Gepard ground penetrating radar is using a multiple transmission frequency range starting at 60 MHz up to 300 MHz which is realized by adjustable telescopic antennas. It furthermore supports many automatic adjustments to optimize your ground surveys on specific soil types, which makes the handling of the Gepard ground radar very easy. You just set your depth resolution and start surveying.

Measurement Data Analysis with Android Software

The measured data of the ground penetrating radar is immediately transferred to the Android Tablet PC. The Android software receives the data via WiFi and displays it directly on screen.

The software offers the option of integrating a GPS signal or Google Maps, filtering automatically and entering notes for later recollection of specific scan details. Additionally, the automatic filtering option improves the results of your scan and assists in finding hidden objects and structures more easily. Due to the integrated GPS all scan positions can be stored along with the scan data.

OKM GEPARD GPR 3D ÖZELLİKLERİ :

Control unit

Dimensions (H x W x D): 450 x 260 x 130 mm

Weight: approx. 1.6 kg

Input voltage (max.): 8.4 V DC / 1.0 A

Operating temperature: –20°C – 55°C

Storage temperature: –25°C – 60°C

Waterproof: No

Operating time: approx. 4 hours

Air humidity: 5% – 70%

Feedback: acoustic, visual

Protection Type: IP 20

Data Transmission Technology: WiFi, 2.4 GHz

Transmission Frequency Range: 60 – 300 MHz

Timing/Sampling Adjustments: 4 Levels

Complete Cycle Measurements: 9 per second

Telescopic shaft

Dimensions (H x W x D): 70 x 60 x 590–1630 mm

Weight: 0.80 kg

Operating temperature: –20°C – 55°C

Storage temperature: –25°C – 60°C

Waterproof: No

Air humidity: 5% – 70%

Protection Type: IP 20

Internal Battery: 7.26 V / 2600 mAh

Triangular antenna (unshielded)

Dimensions (H x W x D): 1010 x 330 x 50 mm

Weight: 1.50 kg

Operating temperature: –20°C – 55°C

Storage temperature: –25°C – 60°C

Waterproof: No

Air humidity: 5% – 70%

Protection Type: IP 20

The technical data are average values. Minor deviations are possible during operation.
